IEK

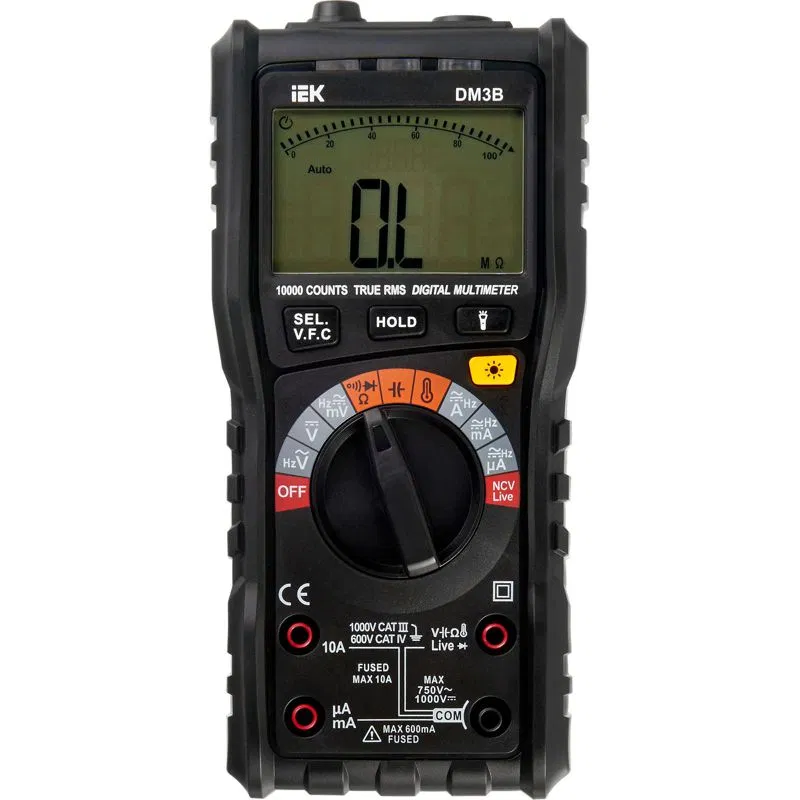

ARMA2L 5 Digital Multimeter DM3B IEK A2L5-DM12-03

SKU: A2L5-DM12-03

ETIM: EC000069

7411 ₽

Price list (incl. VAT): 8421 ₽

Available August 14

Availability

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Смоленск
	Склад производителя Available	620	шт	August 14	August 14

Select a warehouse to order

Description Specifications Reviews

Analog histogram with analog/logarithmic display	Yes
Analogue reading	Yes
Weight	0.36 кг
Explosion-proof verified	No
Range selection	Automatic
Height	185.0 мм
Temperature measuring range	-20...1000
Capacitance measurement	No
Inductance measurement	No
True RMS measurement (TRMS)	Yes
Relative value measurement	No
Conductivity measurement	No
Temperature measurement	Yes
RTD temperature measurement	Yes
Temperature measurement with remote sensor	No
Operating cycle measurement	No
Frequency measurement	Yes
Housing insulation	Double, class II
IR interface	No
Polarity indicator	Yes
Indication	Digital
Interface	No
Measurement category	CAT IV
Max storage capacity	No
Max. capacitance measuring range	6 мкФ
Max. voltage measuring circuit category	1000 В
Maximum AC voltage measuring range	750 В
Maximum DC voltage measuring range	1000 В
Maximum AC current measuring range	10 А
Maximum DC current measuring range	10 А
Maximum resistance range	10 МОм
Min storage volume	No
Min. resolution, capacitance	1 uF
Min resolution, temperature	1 °C
Multi-display	Yes
Lowest AC voltage resolution	0.1 mV
Lowest DC voltage resolution	0.1 mV
Smallest AC current resolution	0.1 uA
Smallest DC current resolution	0.1 uA
Smallest resistance resolution	0.1 Ohm
Instrument scale illumination	Yes
Measured value memory	Yes
Instantaneous value memory (Data Hold)	No
Continuity test/diode test	Yes
Peak value recorder	No
Current type	AC/DC
With noise level measurement (dB)	No
IP protection rating
Operating temperature from	0...40 град.C

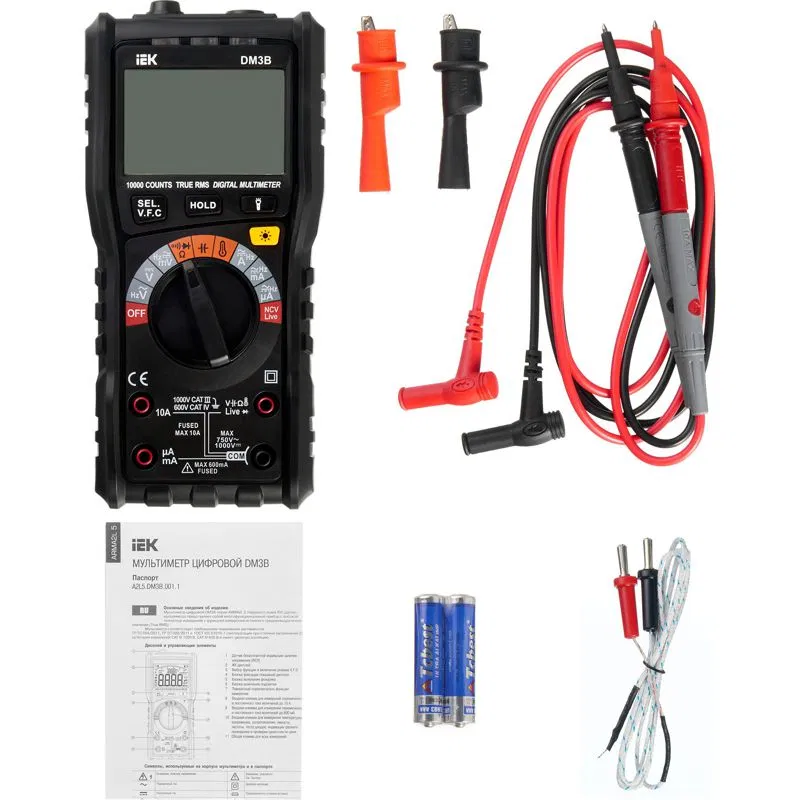

Thermocouple included	Yes
Overload protection device from	Yes А
Width	мм
