Systeme Electric

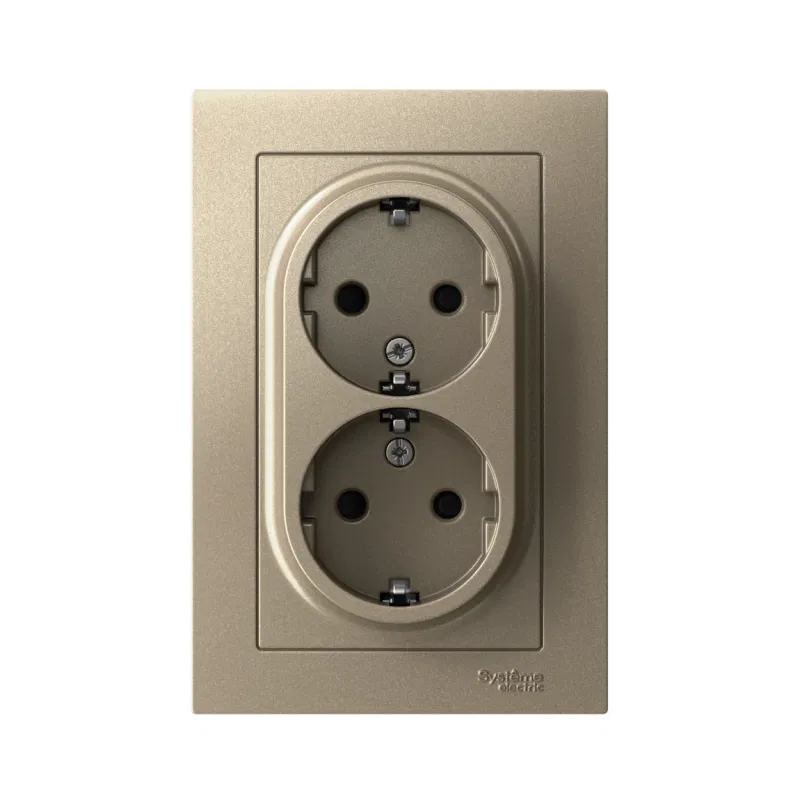

ATLASDESIGN DOUBLE SOCKET with shutter, grounding, 16A, assembly, CHAMPAGNE

SKU: ATN000526

ETIM: EC000125

590 ₽

Price list (incl. VAT): 590 ₽

Available August 25

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Smolensk
Manufacturer warehouse
	SE Лобня Available	258	шт	August 25	clarifying

Select a warehouse to order

Description Specifications Reviews

Special power supply	No special power supply required
RAL number (similar)	7032
Antibacterial	No
Supplied with plug (connector)	No
Material type/grade	Thermoplastic
Phase selection	No (without)
Device height	124 мм
Device depth	48 мм
Differential current protection	No
For heavy duty (per VDE)	No
Contact protection	Yes
Overvoltage protection	No
Protective surface coating	Untreated
Round protective grounding contact (pin)	Yes
Insulated installation	Yes
Design	With SCHUKO earthing contact
Number of active contacts (round)	2
Number of seats	2
Number of switchable outlets	0
Number of phases	1
Material	Plastic
Extraction mechanism	No
Minimum depth of recessed mounting box	48 мм
Halogen-free	Yes
Rated voltage	250 В
Rated current	16 А
Labelling surface	No
Suitable for ingress protection IP	IP20
Transparent	No
With built-in USB charger	No
With power switch	No
With lock	No
With orientation lighting	No
With hinged cover	No
With illumination (mains voltage indication)	No
With signal lamp	No
With low-current fuse	No
With through-channel function	No
With central insert	No
Symbols/indication	Without marking
With shutters (touch protection)	Yes
Mounting method	Flush-mounted
Connection method	Screw terminal
Fastening type	Clamp mounting/Screw mounting
Surface type	Matte
Impact resistance	IK02
Color	Champagne
Frequency at	50 Гц
Frequency from	50 Гц
Device width	83 мм
