ONI (Группа IEK)

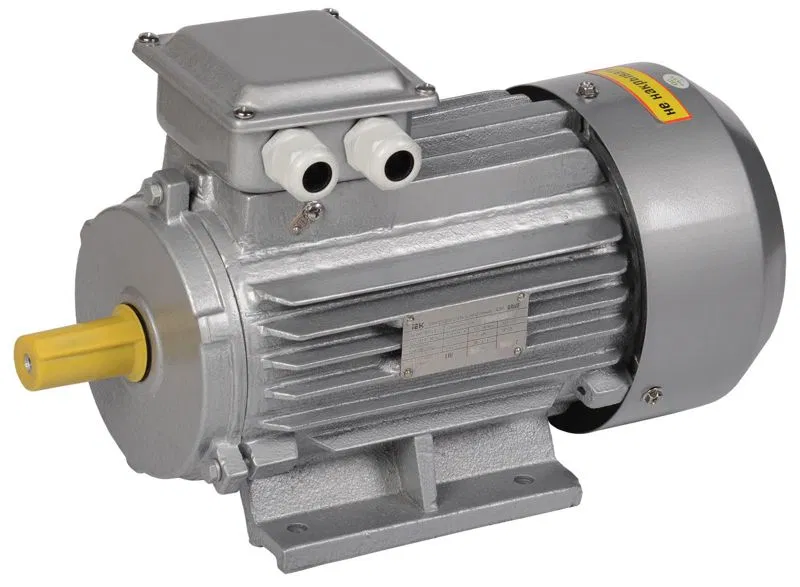

Three-phase asynchronous electric motor AIR 90LB8 380V 1.1kW 750rpm 1081 DRIVE IEK DRV090-B8-001-1-0710

SKU: DRV090-B8-001-1-0710

ETIM: EC001851

44916 ₽

Available August 18

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Смоленск
	Склад производителя Available	12	шт	August 18	August 18

Select a warehouse to order

Description Specifications Reviews

Height	310 мм
Height	310 мм
Height C l31	56
Frame size - shaft height H	90
Depth	420 мм
Mounting hole diameter K d10	10,0
Stator core length	B-second
Design	Asynchronous AC motor
Insulation thermal class	F
Climatic version	U2
Number of poles	8
Housing material	Aluminum
Housing material	Aluminum
Mounting design	IM1081
Power	1.10 Вт
Rated power at rated mains frequency	1.10 кВт
Rated frequency from	50 Гц
Rated voltage	220/380 В
Bearing	Ball bearing
Operating mode	Continuous-S1
Current type	Alternating current (AC)
Ingress protection (IP) in enclosure	IP55
Operating temperature from	-45...40 град.C
Size	90 мм
Noise level meets class	1
Mounting size along bed length	L-long
Actual rotational speed	685
Rotational speed	750
Width	270 мм
Mounting hole width B l10	125
Mounting hole width b10 A	140
