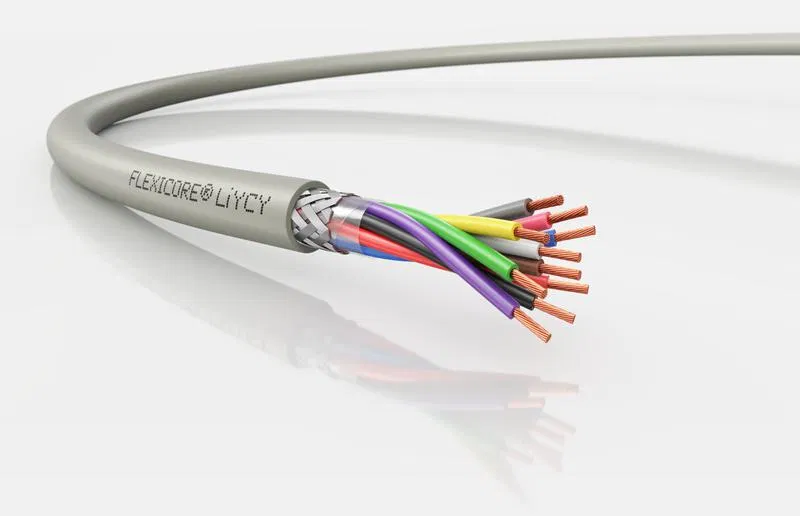

Кабель с медными лужеными жилами, с изоляцией и оболочкой из поливинилхлоридного пластиката (Э-экранированный). Кабели предназначены для эксплуатации в стационарном состоянии при температуре окружающей среды от -50 оС до +50 оС и относительной влажности воздуха до 98% при температуре до 35 оС
| Permissible operating temperature (no movement) to | 50 град.C |
| Permissible operating temperature (without movement) from | -50 град.C |
| Core insulation | Polyvinyl chloride (PVC) |
| Conductor class | 4 - stranded |
| Number of cores | 2 |
| Core marking | Colour |
| Oil resistance in accordance with EN 60811-2-1 | No |
| Outer sheath material | Polyvinyl chloride (PVC) |
| Outer diameter (approx.) | 5.98 мм |
| Low smoke emission in accordance with EN 61034-2 (ng-LS version) | No |
| Rated voltage U | 500 кВ |
| Rated conductor cross-section | .5 кв.мм |
| Fire resistance | No |
| Recommended installation temperature during pulling, up to | 50 град.C |
| Recommended installation temperature during pulling from | -15 град.C |
| Low temperature resistance in accordance with EN 60811-1-4 | Yes |
| Outer sheath colour | Black |
