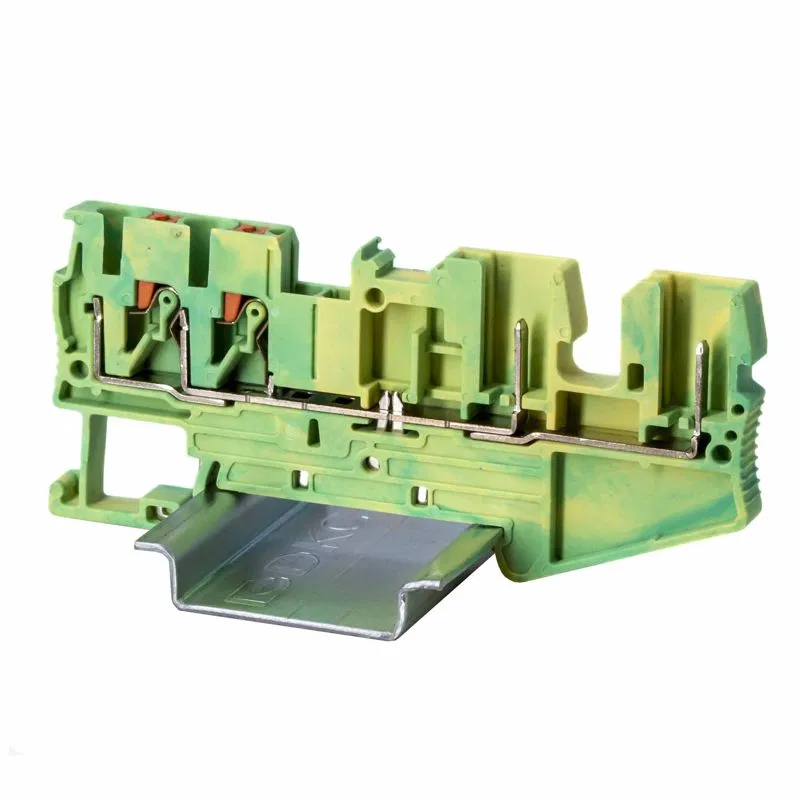

Grounding terminal block for plug-in connector, push-in clamp, 4 connection points, 2.5 mm2 VPR-2.5-QT-2P-PE DKC
SKU: VPR-2.5-QT-2P-PE
ETIM: EC000901
372 ₽
Price list (incl. VAT):
532 ₽
Available July 31
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Смоленск | |
|---|---|---|---|---|---|
|
Склад производителя
Available
|
9760 | шт | July 31 | July 31 |
Select a warehouse to order
Клемма заземления с push-in зажимом предназначена для быстрого и надежного подключения проводников с возможностью установки вставного штекера. Обеспечивает устойчивое заземляющее соединение и стабильный контакт в электрических цепях. 4 точки подключения, номинальное сечение 2,5 мм2. Габариты (В?Ш?Г) — 37,2?80,8?5,2 мм. Цвет — желто-зеленый.
| Minimum possible mounting height | 37.2 мм |
| Length | 80.8 мм |
| Length | 80.8 мм |
| Flammability class of insulation material in accordance with UL57 | V0 |
| Number of terminals per level | 4 |
| Number of levels | 1 |
| Housing insulation material | Thermoplastic |
| Availability of PEN terminal | true |
| Closing plate can be fitted if required | true |
| Operating temperature | 105 град.C |
| Operating temperature from | -40 град.C |
| Connection position | Atop |
| Stranded wire cross-section with ferrule | 0.14 ...2.5 мм² |
| Flexible stranded conductor cross-section up to | 2.5 кв.мм |
| Stranded flexible conductor cross-section from | .14 кв.мм |
| Solid conductor cross-section to | 4 кв.мм |
| Solid conductor cross-section from | .14 кв.мм |
| Extra-fine-stranded flexible conductor cross-section without ferrule, from | 0.14 ...2.5 кв.мм |
| Mounting method | DIN rail 35 mm |
| Electrical connection type 1 | Spring clamp connection |
| Electrical connection type 2 | Plug-in connection |
| Colour | Green/yellow |
| Color | Yellow-green |
| Width/connection pitch | 5.2 мм |
