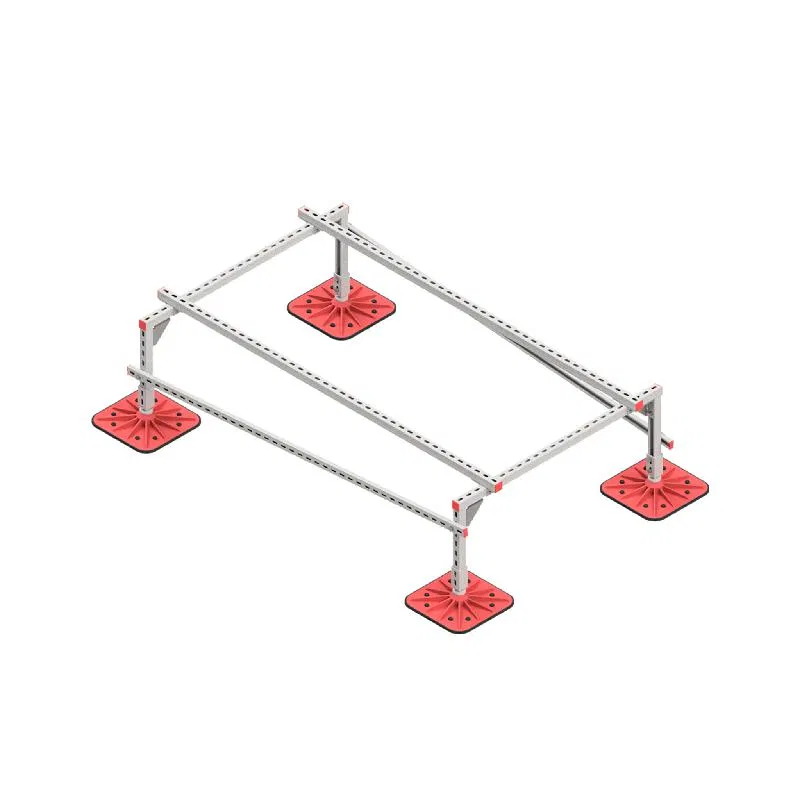

Support structure for horizontal rectangular air ducts and metal cable tray systems TECHNORAPTOR STEELFOOT 350x500 KM TR0164 KM SYSTEM

The specified dimensions are maximum. The frame is adjustable depending on the connection dimensions of the equipment being installed. Before ordering components, it is required to perform a calculation of snow and wind loads for the specific delivery object. It is prohibited to fasten roof supports to the base. The fastening elements of the unit (bolts, nuts, vibration dampers, etc.) are not included in the specification of the support structure; the quantity and dimensions depend on the specific equipment. The KM-TECHNORAPTOR-STEELFOOT roof support provides compensation for roof slope up to 15 degrees. Maximum allowable distributed load on the metal frame is 400kg. This structure is made of steel strat-profile with a Sendzimir galvanized coating. It is also possible to execute with a hot-dip galvanized profile coating.
