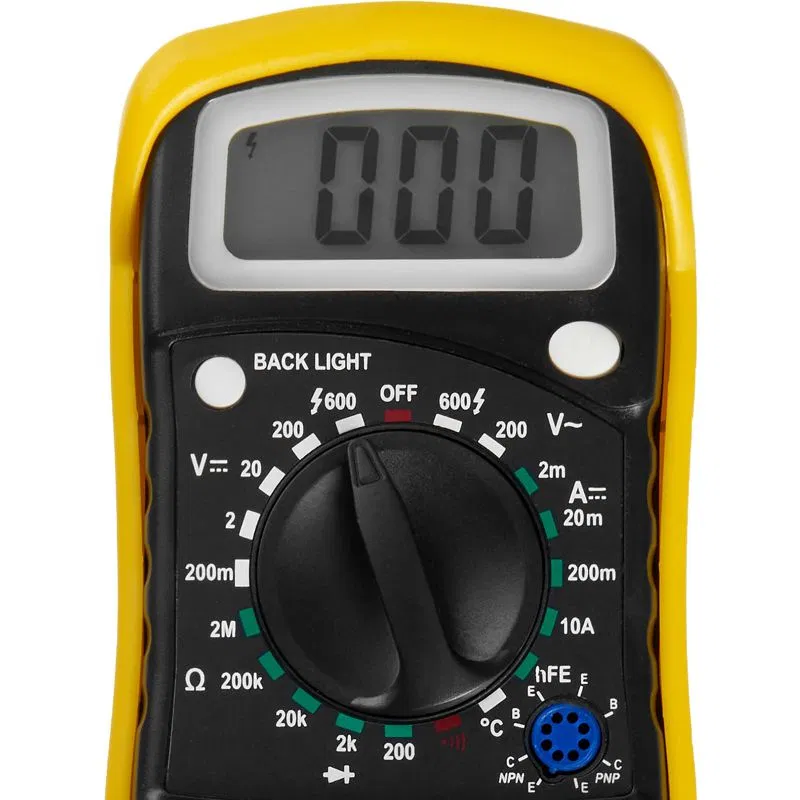

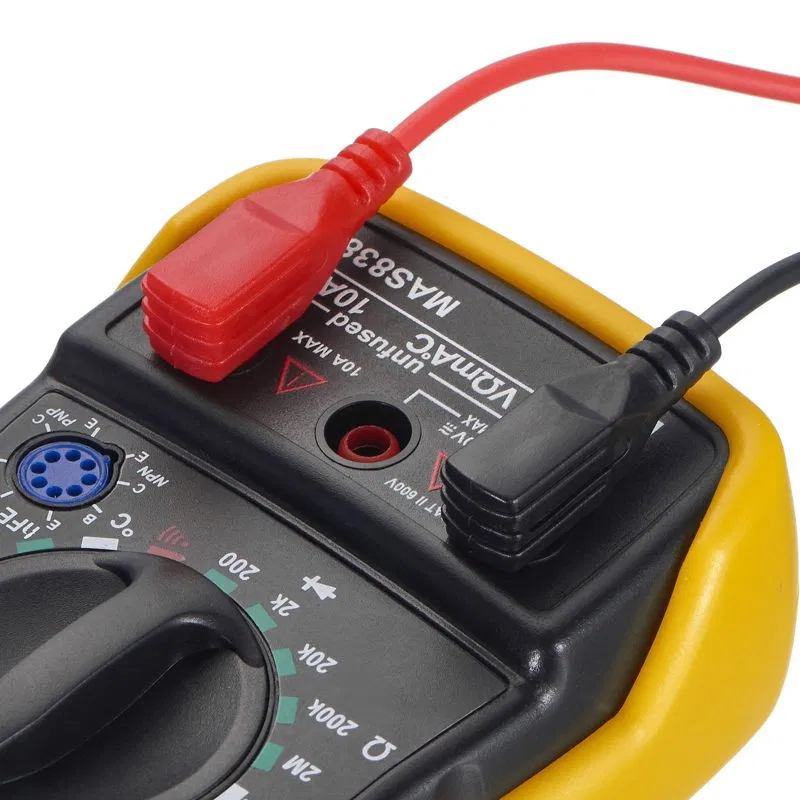

Digital multimeter MASTER MAS838L IEK TMD-3L-838

SKU: TMD-3L-838

ETIM: EC000069

1968 ₽

Price list (incl. VAT): 1968 ₽

Available July 30

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Смоленск
	Удалённый склад	9	шт	July 30	July 30
	Склад производителя Available	793	шт	August 17	August 17

Select a warehouse to order

Description Specifications Reviews

Analogue reading	No
Weight	0.16 кг
Range selection	Manual
Height	32.0 мм
Capacitor capacitance measuring range	-
Resistance measuring range	200 Ohm...2 kOhm...20 kOhm...200 kOhm...2 MOhm
Temperature measuring range	0...750
Diode test range	2.8 V / 1 mA
Transistor hFE test range	0...1000
Length	138.0 мм
Capacitance measurement	No
Inductance measurement	No
True RMS measurement (TRMS)	No
Relative value measurement	No
Conductivity measurement	Yes
Temperature measurement	Yes
Operating cycle measurement	No
Frequency measurement	No
Housing insulation	Double, class II
Overload indicator	Yes
Polarity indicator	Yes
Indication	Digital
Interface	No
Measurement category	CAT II
Max storage capacity	No
Max display reading	1999
Maximum AC voltage measuring range	600 В
Maximum DC voltage measuring range	600 В
Maximum AC current measuring range	10 А
Maximum DC current measuring range	10 А
Maximum resistance range	2 МОм
Measurement method	Dual-slope ADC
Min storage volume	No
Multi-display	No
Lowest AC voltage resolution	100 mV
Lowest DC voltage resolution	0.1 mV
Smallest AC current resolution	0.1 uA
Smallest DC current resolution	1 uA
Smallest resistance resolution	0.1 Ohm
Supply voltage from	9 В
Measured value memory	No
Instantaneous value memory (Data Hold)	Yes
Continuity test	Yes
Continuity test/diode test	Yes
Peak value recorder	No
Current type	AC/DC
With noise level measurement (dB)	No
IP protection rating
Operating temperature from	0...40 град.C
Thermocouple included	Yes
Overload protection device from	Yes А
Width	69 мм
