IEK

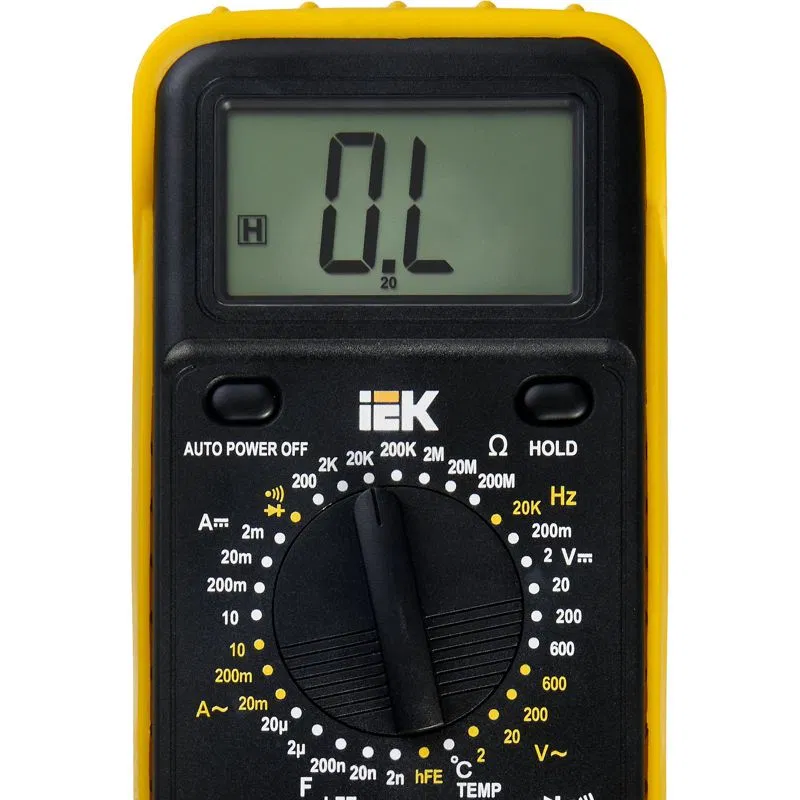

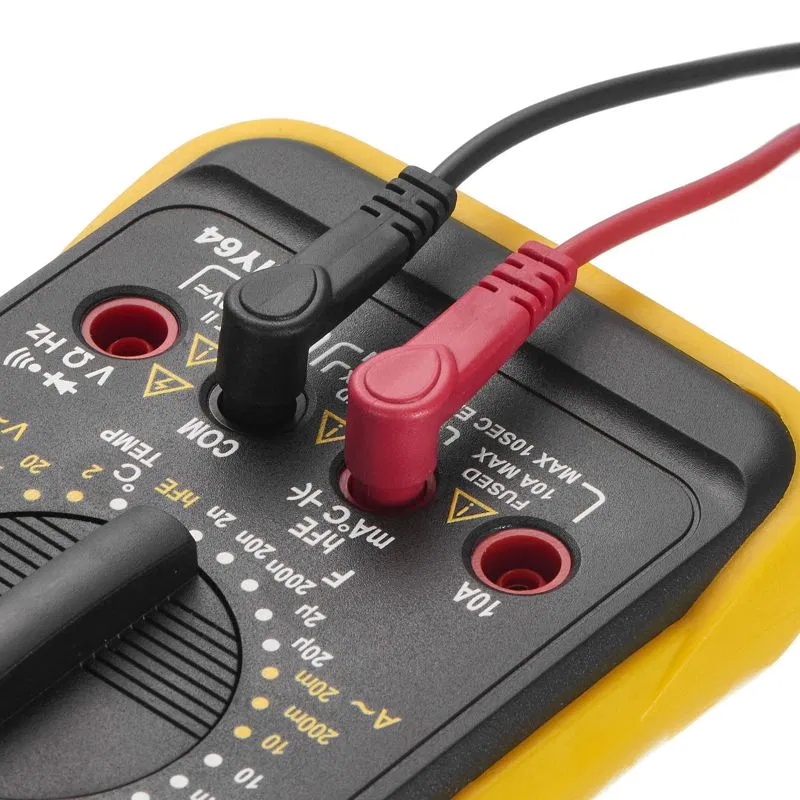

Digital multimeter PROFESSIONAL MY64 IEK TMD-5S-064

SKU: TMD-5S-064

ETIM: EC000069

3917 ₽

Price list (incl. VAT): 5225 ₽

Preorder

Description Specifications Reviews

Analogue reading	No
Weight	0.31 кг
Range selection	Manual
Height	31.5 мм
Capacitor capacitance measuring range	2 nF...20 nF...200 nF...2 uF...20 uF
Resistance measuring range	200 Ohm...2 kOhm...20 kOhm...200 kOhm...2 MOhm...20 MOhm...200 MOhm
Temperature measuring range	0...750
Frequency measuring range	20 kHz
Diode test range	2.8 V / 1 mA
Transistor hFE test range	0...1000
Length	189.0 мм
Capacitance measurement	Yes
Inductance measurement	No
True RMS measurement (TRMS)	No
Relative value measurement	No
Conductivity measurement	Yes
Temperature measurement	Yes
Operating cycle measurement	No
Frequency measurement	Yes
Housing insulation	Double, class II
Overload indicator	Yes
Polarity indicator	Yes
Indication	Digital
Interface	No
Measurement category	CAT II
Max storage capacity	No
Max display reading	1999
Maximum AC voltage measuring range	700 В
Maximum DC voltage measuring range	600 В
Maximum AC current measuring range	10 А
Maximum DC current measuring range	10 А
Maximum resistance range	200 МОм
Measurement method	Dual-slope ADC
Min storage volume	No
Multi-display	No
Lowest AC voltage resolution	100 mV
Lowest DC voltage resolution	0.1 mV
Smallest AC current resolution	10 uA
Smallest DC current resolution	1 uA
Smallest resistance resolution	0.1 Ohm
Supply voltage from	9 В
Measured value memory	No
Instantaneous value memory (Data Hold)	No
Continuity test	Yes
Continuity test/diode test	Yes
Peak value recorder	No
Current type	AC/DC
With noise level measurement (dB)	No
IP protection rating
Operating temperature from	0...40 град.C
Thermocouple included	Yes
Overload protection device from	Yes А
Width	мм
