IEK

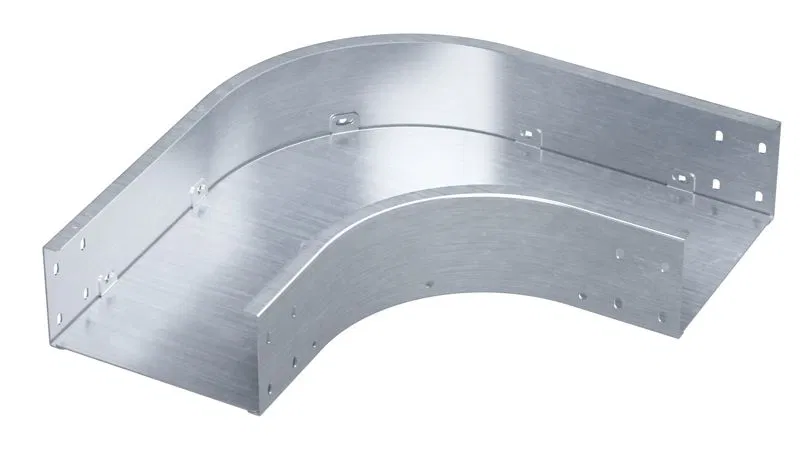

90-degree tray angle 500x150 R300 LESTA HDZ IEK CPG04-4-90-150-500-HDZ
SKU: CPG04-4-90-150-500-HDZ
ETIM: EC002400
9085 ₽
Analogues by specifications
Used to organize a 90° turn of the cable route in a horizontal plane with a turning radius of 300 mm.
Made of coiled cold-rolled steel with subsequent application of a protective zinc coating by hot-dip method (GOST 9.307-89).
Weight
7.2 кг
Material type/grade
Galvanized steel
Internal radius
300 мм
Height
150 мм
Height
150 мм
Cable tray height
150 мм
Length
Please provide the text you would like me to translate. You only provided the number "1017". мм
Length
Please provide the text you would like me to translate. You only provided the number "1017". мм
Protective surface coating
Hot-dip coating
Direction change
Horizontal
Design
Integrated connector
Corrosion resistance class
6
Climatic version
U1, KhL1, UKhL1, UKhL5, OM1
Material
Steel
Mounting perforation in base
Yes
Mounting temperature from
-50...40 град.C
Pickled stainless steel
No
RAL colour number
7047
Perforated side wall
Yes
Rotation (angle)
90
Suitable for circuit integrity (fire resistance)
No
IP protection rating
IP00
Operating temperature from
-50...40 град.C
Metal thickness
1.2
Zinc coating thickness
55
Colour
Light grey
Color
Light grey
Width
500 мм
Cable tray width
500 мм
Branch width
500 мм
Wide-range version
Yes
