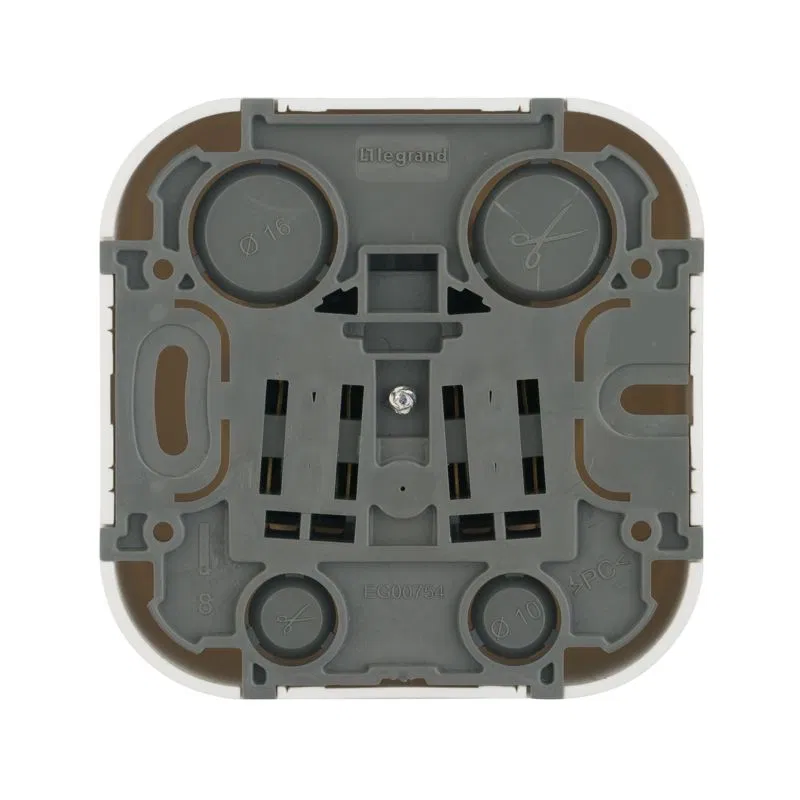

Socket 1-gang surface mounted Quteo 16A IP20 250V 2P+E with earthing shutters white IEK 782220 Legrand (IEK group)

SKU: 782220

ETIM: EC000125

238 ₽

Price list (incl. VAT): 238 ₽

Available July 29

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Смоленск
	Удалённый склад	532	шт	July 29	July 29

Select a warehouse to order

Description Specifications Reviews

Special power supply	No special power supply required
RAL number (similar)	9003
Antibacterial	No
Material type/grade	Thermoplastic
Phase selection	No (without)
Device height	65 мм
Device depth	38.5 мм
Differential current protection	No
For heavy duty (per VDE)	No
Contact protection	Yes
Overvoltage protection	No
Protective surface coating	Untreated
Insulated installation	No
Design	With SCHUKO earthing contact
Number of seats	1
Number of modules (modular system)	0
Number of switchable outlets	0
Number of phases	1
Material	Plastic
Extraction mechanism	No
Minimum depth of recessed mounting box	0 мм
Halogen-free	Yes
Rated voltage	250 В
Rated current	16 А
Rated current	А
Rated leakage current	0 мА
Labelling surface	No
Suitable for ingress protection IP	IP20
Transparent	No
With built-in USB charger	No
With power switch	No
With lock	No
With orientation lighting	No
With hinged cover	No
With illumination (mains voltage indication)	No
With signal lamp	No
With low-current fuse	No
With through-channel function	Yes
With central insert	No
Symbols/indication	Without marking
With shutters (touch protection)	Yes
Mounting method	Surface mounting
Connection method	Screw terminal
Fastening type	Screw mounting
Surface type	Shiny
Impact resistance	IK04
Switch-off function	No
Color	White
Colour	White
Frequency at	60 Гц
Frequency from	50 Гц
Device width	65 мм
