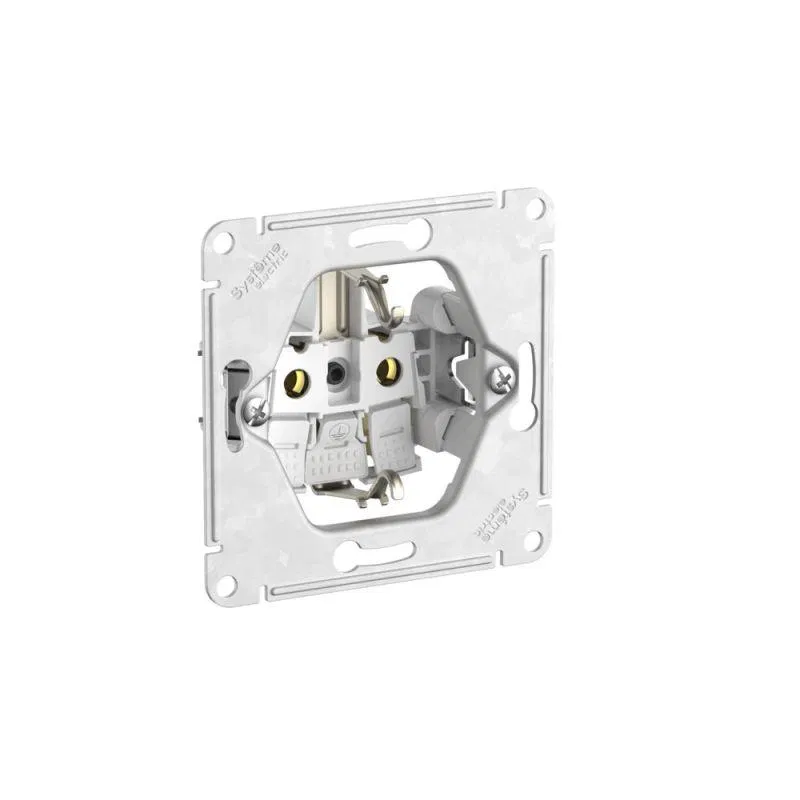

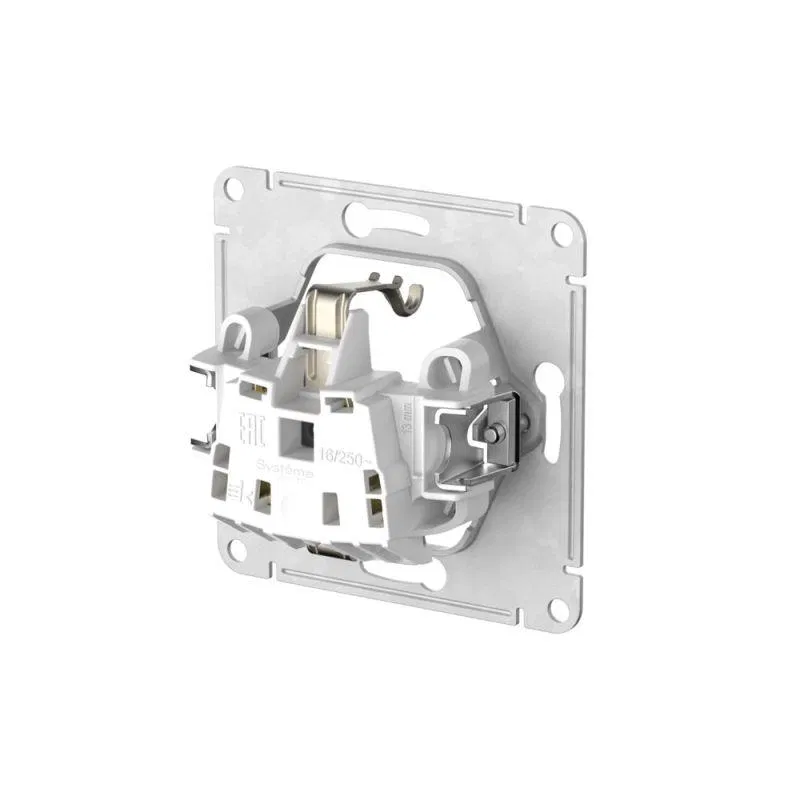

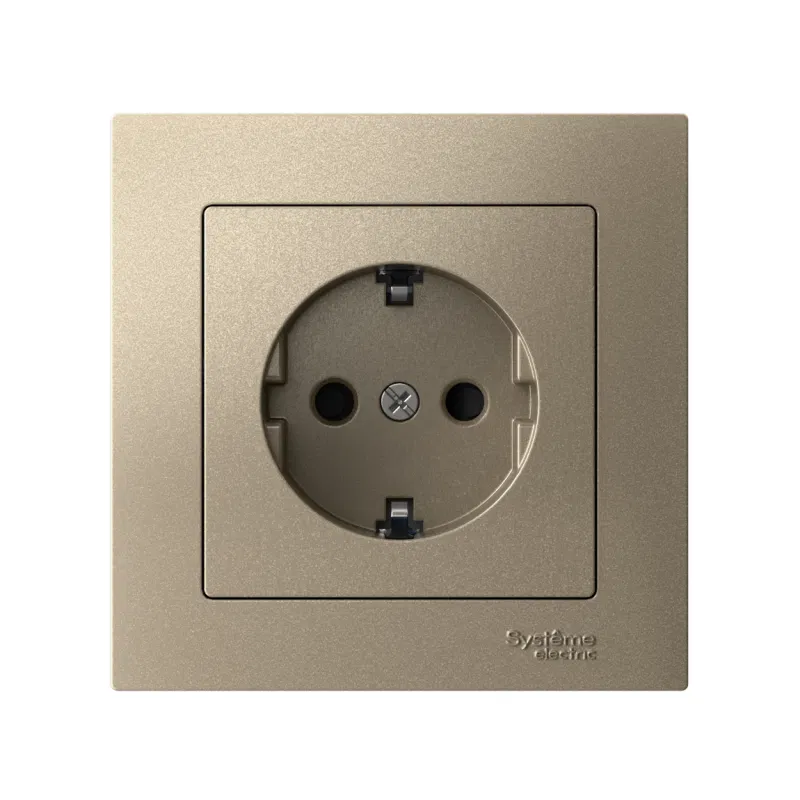

AtlasDesign Socket 16A with grounding shutters quick-connect terminals assembly champagne SE ATN000544S Systeme Electric

SKU: ATN000544S

ETIM: EC000125

455 ₽

Preorder

Description Specifications Reviews

Special power supply	No special power supply required
Antibacterial	No
Supplied with plug (connector)	No
Material type/grade	Thermoplastic
Device height	83 мм
Device depth	40.2 мм
Differential current protection	No
For heavy duty (per VDE)	No
Contact protection	Yes
Overvoltage protection	No
Protective surface coating	Untreated
Round protective grounding contact (pin)	Yes
Insulated installation	Yes
Design	With SCHUKO earthing contact
Number of seats	1
Number of phases	1
Material	Plastic
Extraction mechanism	No
Halogen-free	Yes
Rated voltage	250 В
Rated current	16 А
Labelling surface	No
Suitable for ingress protection IP	IP20
Transparent	No
With built-in USB charger	No
With power switch	No
With lock	No
With orientation lighting	No
With hinged cover	No
With illumination (mains voltage indication)	No
With signal lamp	No
With low-current fuse	No
With through-channel function	No
With central insert	No
Symbols/indication	Without marking
With shutters (touch protection)	Yes
Mounting method	Flush-mounted
Connection method	Pluggable terminal
Fastening type	Clamp mounting/Screw mounting
Surface type	Matte
Impact resistance	IK02
Color	Beige
Frequency at	50 Гц
Frequency from	50 Гц
Device width	83 мм
