LEDEL

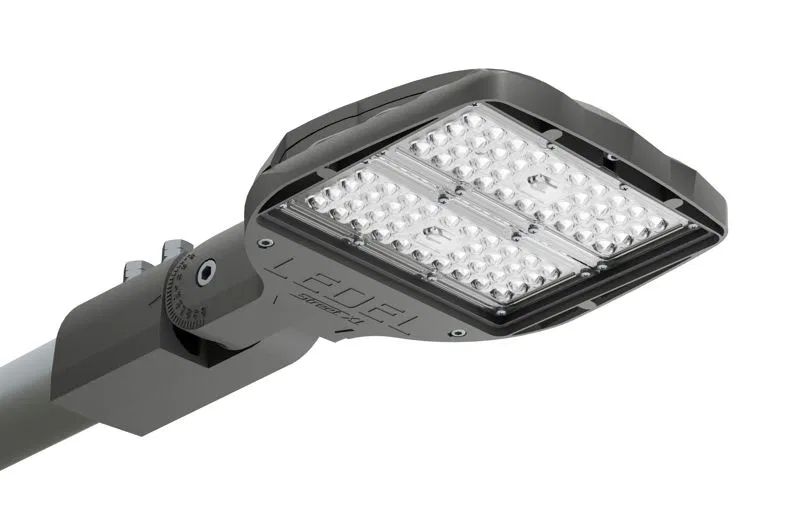

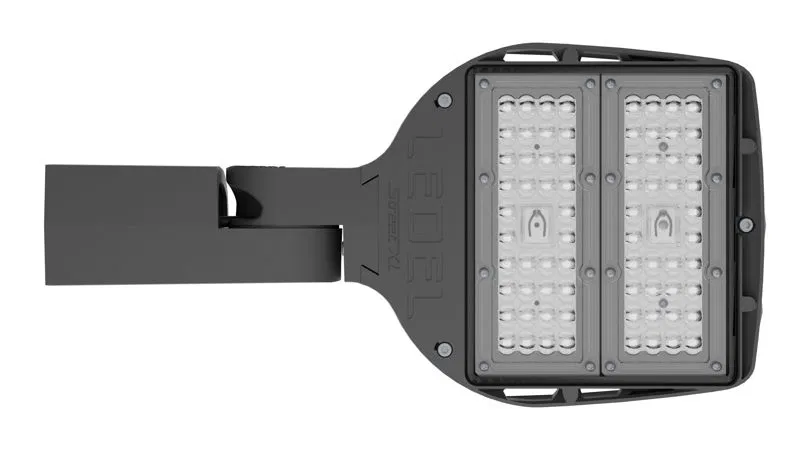

Светильник Street X1/40/Ш8M/740/R8/MT-КМ/SKX-02/230AC IP66 2.0 LEDEL X40-84117-5214-1281

SKU: X40-84117-5214-1281

ETIM: EC000062

21361 ₽

Price list (incl. VAT): 21361 ₽

Preorder

Description Specifications Reviews

Without dimming	Yes
Supplied with lamp	No
Diffuser material type/grade	PMMA (polymethyl methacrylate)
Height	91.0 мм
Height/depth	91 мм
Diameter	59 мм
Operating voltage range	165...430
0-10 V dimming	No
1-10V dimming	No
DALI dimming	No
DMX dimming	No
Voltage modulation dimming	No
Remote control	No (without)
Length	414 мм
Length	414.0 мм
Cable length	.3 м
Ignitor	Not required
Protective surface coating	Powder coating
Colour rendering index	70-79 (class 2A)
Electric shock protection class	I
Power factor	.95
Maximum power	40 Вт
Maximum lamp power	40 Вт
Housing material	Aluminum
Housing material	Aluminum
Diffuser/lampshade material	PMMA (polymethyl methacrylate)
Rated voltage up to	230 В
Rated voltage from	230 В
Rated luminous flux	7200 лм
Ballast included	No
Suitable for lamp power to	40 Вт
Suitable for lamp power from	40 Вт
Suitable for upper cut size to	59 мм
Suitable for top-cut size from	48 мм
Suitable for number of light sources	2
Power consumption	40 кВт
Programmable dimming	No
Fire protection "d"	No
Radio-controlled	No
Adjustable optics	No
Current type	Alternating current (AC)
With programmable light control	No
Luminous flux	7200 лм
Touch dimming	No
Core cross-section	1 кв.мм
Mounting method	Cantilever
Connection method	Screw terminal
IP protection rating	IP66
Ambient temperature up to	40 град.C
Ambient temperature from	-60 град.C
Operating temperature from	-60...40 град.C
Lamp type	Non-replaceable LED
Lamp type	LED light source
Connection type	Terminating
Diffuser type	Multi-lens
Impact resistance	IK08
Control device	LED driver (LED power supply)
Housing color	Grey
Light color	White
Color temperature at	4000 К
Colour temperature from	4000 К
Lamp base (holder)	No (without)
Width	208 мм
Power supply energy efficiency (ballast, driver, transformer)	A2 BAT
Luminaire efficiency	180 лм/Вт
