Diora

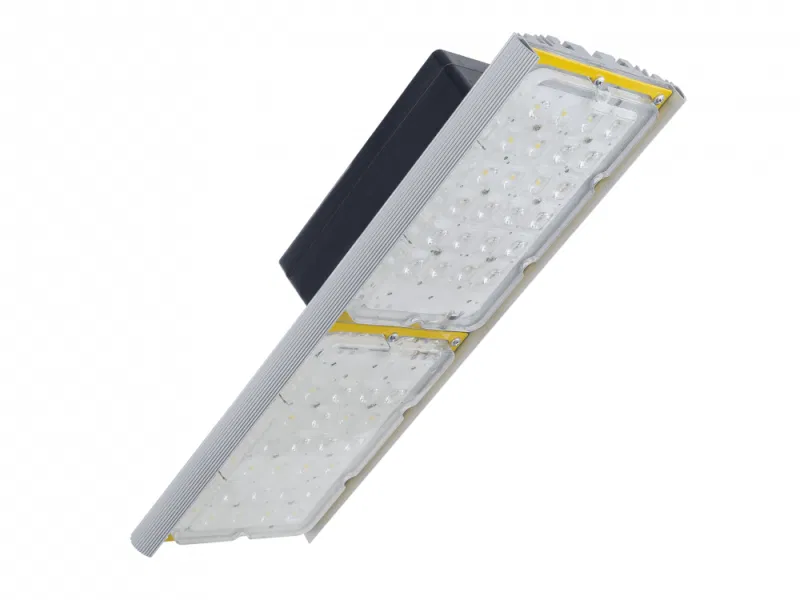

LED luminaire Unit DC Ex NB 45/5500 D120 5500lm 45W 3000K IP66 0.98PF 70Ra Kp<1 console Diora DUDCExNB45D120-3K-C
SKU: DUDCExNB45D120-3K-C
ETIM: EC001952
33789 ₽
Preorder
Explosion protection class 1Ex
Explosion protection marking 1Ex mb IIC T6 Gb X
Low mass (not more than 5.7 kg)
Resistant to aggressive environments
Capability to operate in a 36V DC network
Use as part of autonomous lighting systems
Lighting of facilities with flowing water
Optimal choice for lighting any objects except mines
| Supplied with lamp | Yes |
| Height/depth | 97 мм |
| Length | 216 мм |
| For gas explosion hazardous areas | 1, 2 |
| For dust explosion protection zone (EU ATEX directives) | 21, 22 |
| Electric shock protection class | III |
| Number of poles | 2 |
| Power factor | .98 |
| Housing material | Aluminum |
| Diffuser/lampshade material | Structured plastic |
| Rated voltage from | 24 В |
| Rated luminous flux | 5500 лм |
| Rated LED DC current from | 700 мА |
| Ballast included | Yes |
| Suitable for lamp power from | 45 Вт |
| Suitable for number of light sources | 1 |
| Current type | Direct current (DC) |
| Core cross-section | 1 кв.мм |
| Mounting method | Wall mount |
| IP protection rating | IP66 |
| Ambient temperature up to | 40 град.C |
| Ambient temperature from | -60 град.C |
| Lamp type | Non-replaceable LED |
| Connection type | Terminating |
| Light beam angle | Extra wide beam > 80 deg |
| Impact resistance | IK08 |
| Control device | LED current-controlled device |
| Light color | White |
| Color temperature at | 3000 К |
| Colour temperature from | 3000 К |
| Lamp base (holder) | No (without) |
| Width | 165 мм |
