Varton
LED luminaire Tornado 100W 2700K outdoor console mount VARTON V1-S1-70443-40L30-6610027
SKU: V1-S1-70443-40L30-6610027
ETIM: EC000062
54,714 ₽
Analogues by specifications

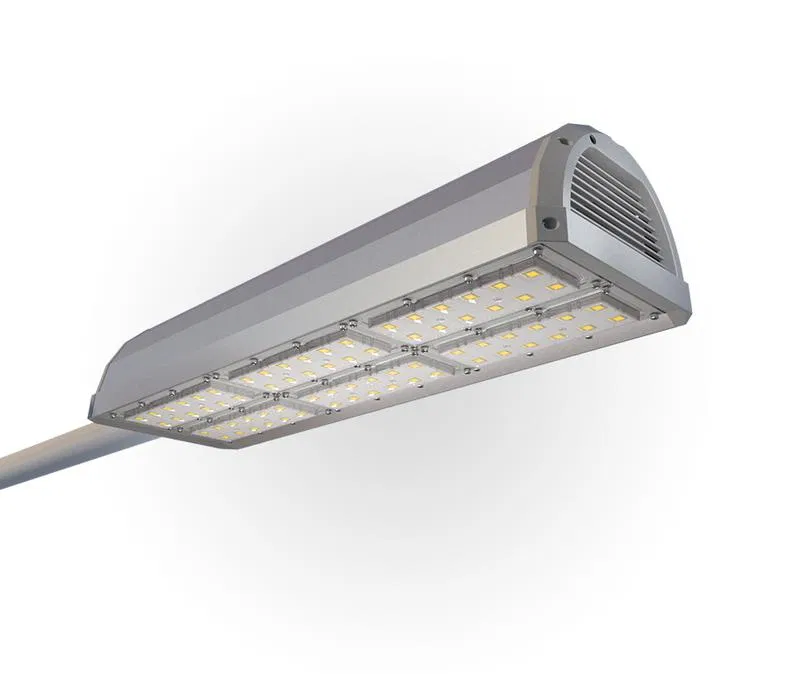

Tornado luminaire series is the optimal solution for lighting all types of highways and main roads. The luminaire uses components from the world's leading LED and electronics manufacturers, ensuring high reliability and efficiency of the product. The universal bracket allows the luminaire to be installed on a mast or console with fine adjustment of the tilt angle. The luminaire housing is made of die-cast aluminum alloy, and tempered glass with high impact resistance is used to protect the LEDs. Easy access to the driver ensures quick maintenance and convenience in installation.
Without dimming
Yes
Supplied with lamp
Yes
Height/depth
100 мм
Diameter at top section on luminaire side
60 мм
0-10 V dimming
No
1-10V dimming
No
DALI dimming
No
DMX dimming
No
GPRS dimming
No
LineSwitch dimming
No
RF dimming
No
Zigbee dimming
No
Voltage modulation dimming
No
Push-button dimming
No
Trailing-edge phase dimming
No
Leading-edge phase-cut dimming
No
Remote control
No (without)
Length
720 мм
Cable length
Please provide the text you would like me to translate. м
Ignitor
Not required
Protective surface coating
Powder-coated
Colour rendering index
70-79 (class 2A)
Electric shock protection class
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Built-in luminaire energy efficiency class
A++, A+, A (LED)
Number of poles
3
Power factor
Please provide the text you would like me to translate. Currently, you have only provided ".97".
Maximum power
100 Вт
Maximum lamp power
100 Вт
Housing material
Aluminum
Diffuser/lampshade material
Clear glass
Rated voltage up to
230 В
Rated voltage from
220 В
Rated luminous flux
12000 лм
Rated LED DC current from
417 мА
Ballast included
Yes
Suitable for upper cut size to
60 мм
Suitable for top-cut size from
48 мм
Suitable for number of light sources
1
Constant luminous flux
No
Dimming potentiometer (built-in)
No
Programmable dimming
No
Fire protection "d"
No
Radio-controlled
No
Light distributor
Focusing lens
DSI dimming
No
Adjustable optics
No
Current type
AC/DC
With programmable light control
No
With connecting cable
Yes
Touch dimming
No
Core cross-section
.75 кв.мм
Sinusoidal dimming
No
Manufacturer's proprietary dimming system
No
Mounting method
Cantilever
Connection method
Clamp contact
Old URL
https://sissol.ru/shop/59041-svetodiodnyj-svetilnik-varton-ulichnyj-tornado-100-vt-kreplenie-na-konsol-2700k.html
IP protection rating
IP66
Ambient temperature up to
45 град.C
Ambient temperature from
-40 град.C
Lamp type
Non-replaceable LED
Connection type
Terminating
Impact resistance
IK09
Control device
LED current-controlled device
Housing color
Grey
Light color
White
Color temperature at
2700 К
Colour temperature from
2700 К
Lamp base (holder)
No (without)
Width
310 мм
Luminaire efficiency
120 лм/Вт
