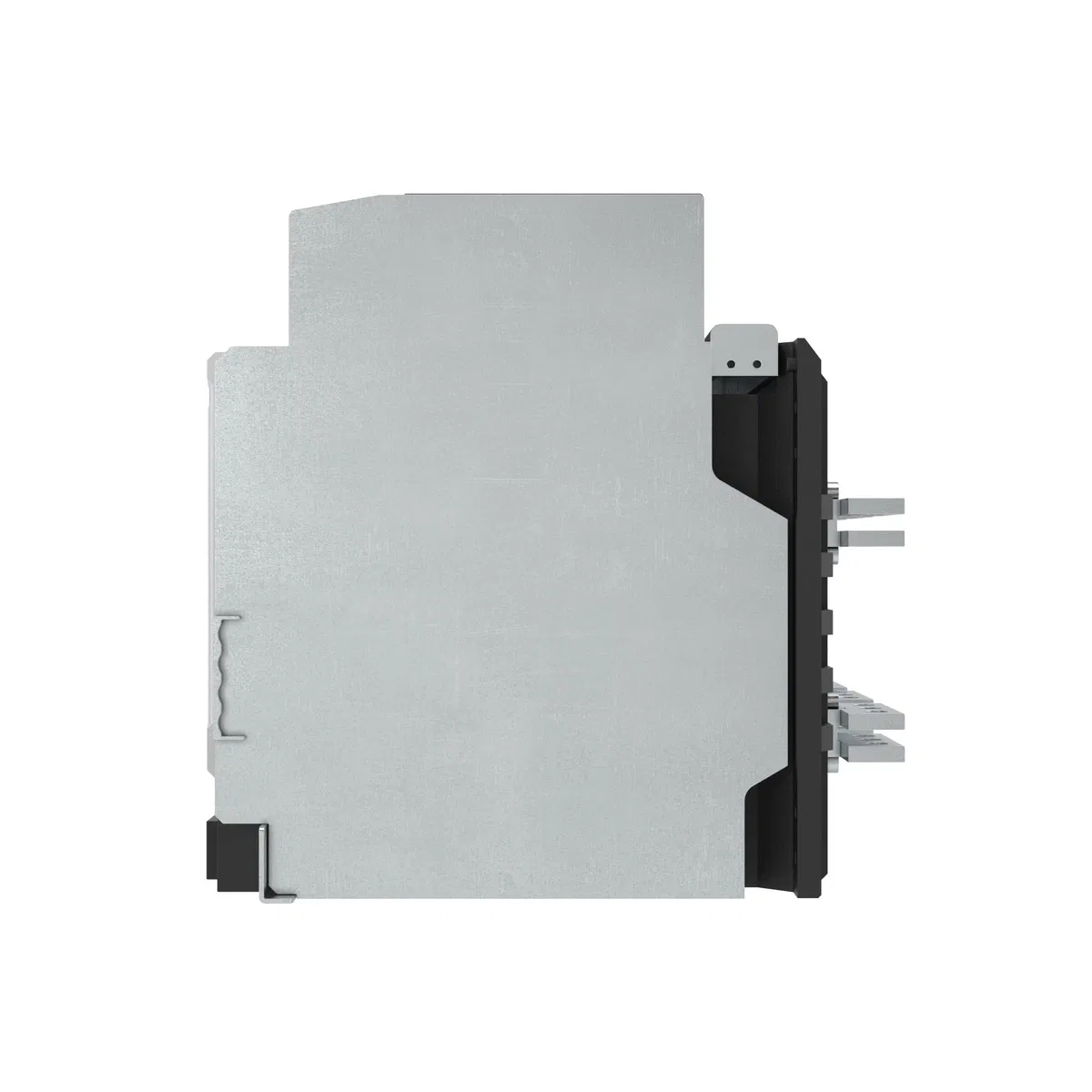

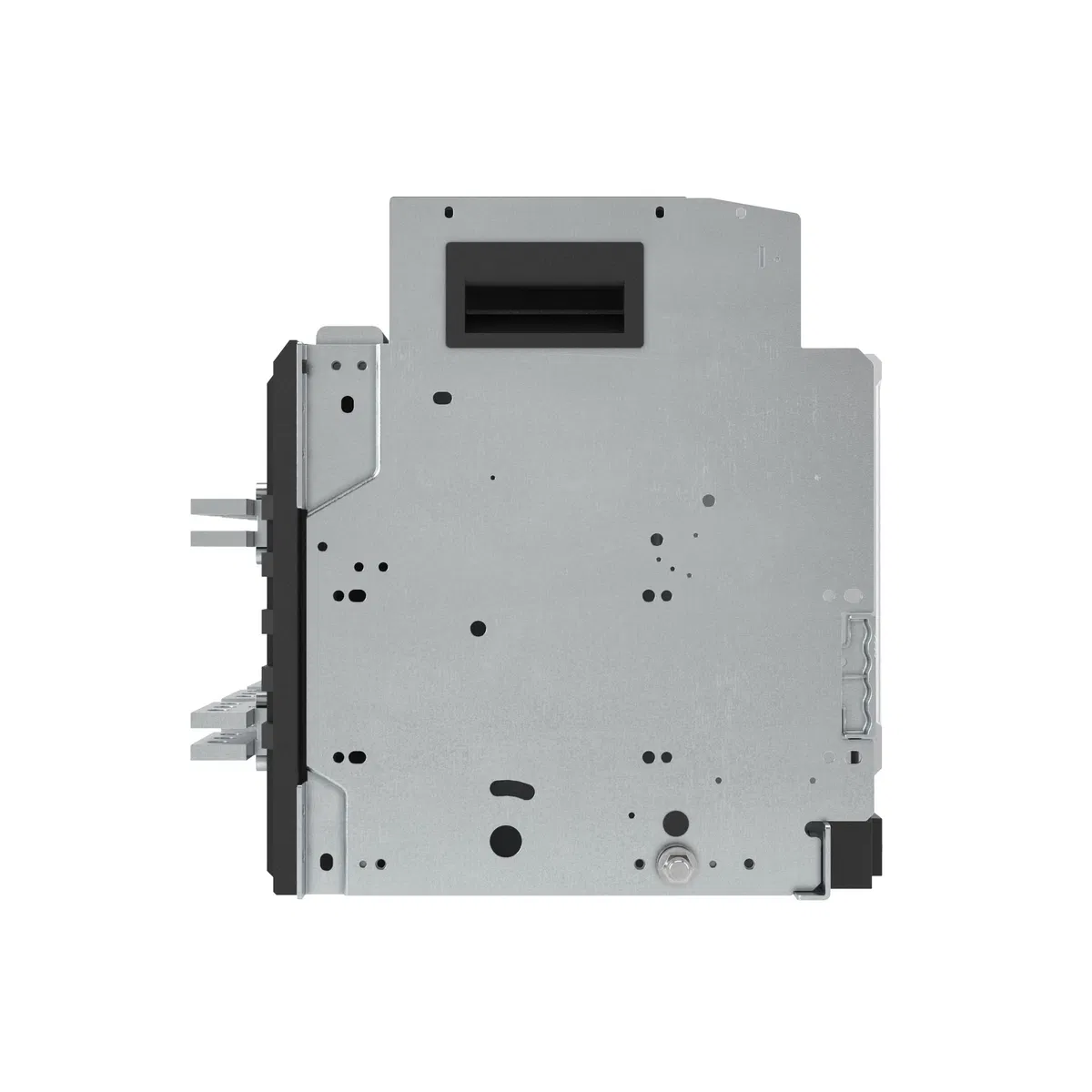

Air Circuit Breaker YON pro ANX40X 3P 4000 A 100 kA, frame size M, release ETE, drawout, horizontal connection, control 220 V AC ANX40XM3DH622200K DKC
SKU: ANX40XM3DH622200K
ETIM: EC000228
1866778 ₽
Price list (incl. VAT):
2666825 ₽
Available August 3
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Manufacturer warehouse
Available
|
12 | шт | August 3 | August 3 |
Select a warehouse to order
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. It is used for operating switching and disconnections, as well as for protection against overloads, short circuits, and ground faults. Rated current 4000 A, breaking capacity 100 kA, 3-pole, withdrawable type, horizontal power terminals, ETE trip unit, 220 V AC control.
| Built-in ground fault protection | Yes |
| Overload protection device setting range to | 4000 А |
| Setting range of overload protection device from | 1600 А |
| Number of auxiliary NO contacts | 6 |
| Number of auxiliary changeover contacts | 6 |
| Number of auxiliary break contacts | 6 |
| Number of poles | 3 |
| Design | Built-in withdrawable device |
| Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz | 100 кА |
| Rated voltage up to | 690 В |
| Rated voltage from | 400 В |
| Rated continuous current Iu | 4000 А |
| Suitable for DIN-rail mounting | No |
| With minimum voltage protection | No |
| IP protection rating | IP20 |
