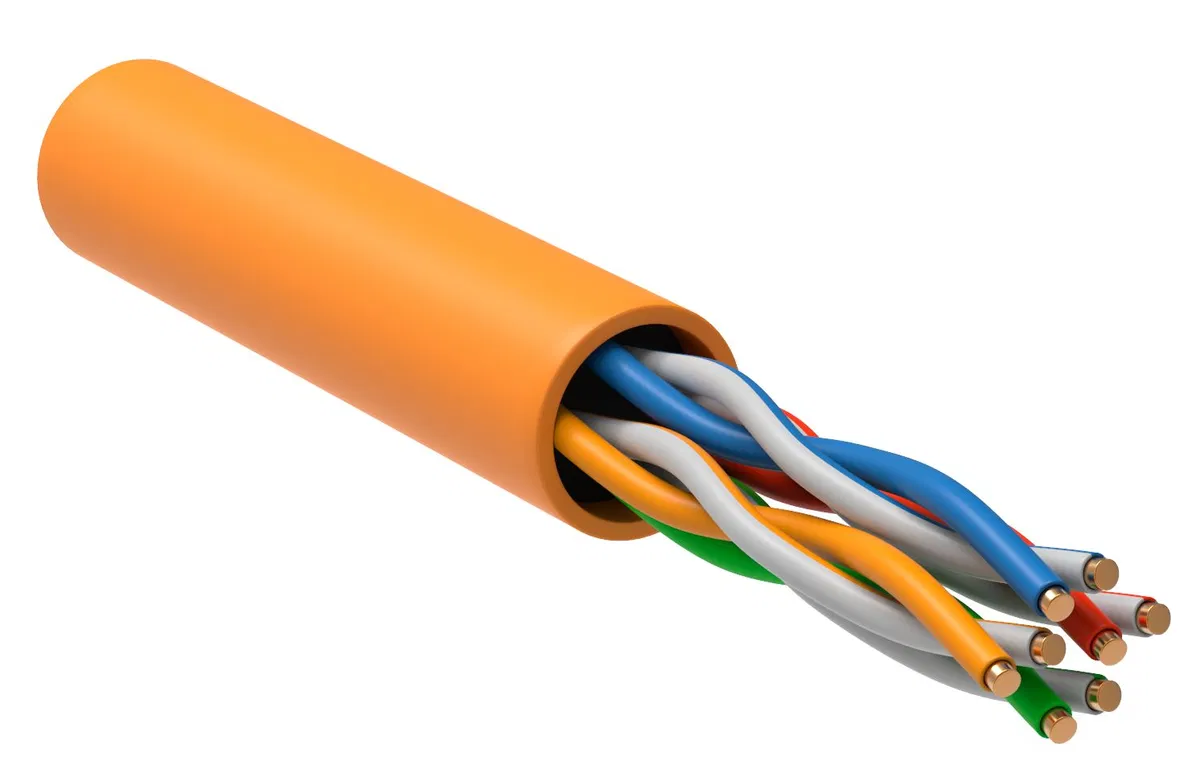

ITK Витая пара U/UTP кат.5E 4х2х0,52 solid LSZH нг(А)-HF оранжевый (305м) РФ/Т LC1-C5E04-127-T-P-R

SKU: LC1-C5E04-127-T-P-R

ETIM: EC003249

Price on request

Preorder

Description Specifications Reviews

Cable outer diameter	5,2
Wave impedance	100 Ом
Conductor diameter	0.52 мм
Cable length	305 м
For laying in the ground
Permissible operating temperature (without movement) from	-60...70 град.C
NVP value	%
Core insulation	Solid polyethylene
Category	5E
Conductor class	Class 1 (solid conductor)
Reaction to fire class in accordance with EN 13501-6	P1b.8.1.2.1
Number of cores
Number of twisted elements
Max mutual capacitance per 100 metres	5.6
Max. contact resistance	20
Max. capacitance unbalance pF per 100 m	160
Max DC resistance per 100m at 20°C, not more than	9,5
Cable/wire grade	U/UTP
Core marking
Outer sheath material	Other
Conductor material
Mounting temperature from	-30...70 град.C
Low smoke emission in accordance with EN 61034-2 (ng-LS version)	Yes
Rated transmission rate	69
Rated voltage from	≤ 48 В
Rated conductor cross-section	0,21 кв.мм
Halogen-free (per IEC 60754-2)
Core cross-section	24 мм
Insulation resistance	5000
Operating temperature from	-60...70 град.C
UV resistance
Outer sheath colour
Signal frequency	100
Screen over the twist	No
Dielectric strength	1000
Twisting element	Paired
